Unidirectional Transient Voltage Suppressor (TVS) diode with 400W peak pulse power dissipation. Features a 5V reverse standoff voltage, 6.4V minimum breakdown voltage, and 9.2V maximum clamping voltage. Operates across a temperature range of -55°C to 150°C with a maximum leakage current of 800µA. Packaged in a DO-214AC (SMA) surface-mount package, this RoHS compliant component offers 40A maximum forward surge current.
PackageDO-214AC
Voltage Rating3.5V
PolarityUnidirectional
Power400W
Quick Jump:
Technical Specifications
Vishay SMAJ5.0A-E3/61 technical specifications.
General
| Package/Case | DO-214AC |
| Clamping Voltage | 9.2V |
| Clamping Voltage-Max | 9.2V |
| Direction | Unidirectional |
| Height | 2.29mm |
| Lead Free | Lead Free |
| Leakage Current | 800uA |
| Length | 4.5mm |
| Max Breakdown Voltage | 7.07V |
| Min Breakdown Voltage | 6.4V |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400W |
| Max Reverse Leakage Current | 800uA |
| Max Surge Current | 43.5A |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1800 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 43.5A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Dissipation | 400W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6.4V |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Series | SMAJ |
| Termination | SMD/SMT |
| DC Rated Voltage | 5V |
| Width | 2.79mm |
| Working Voltage | 3.5V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SMAJ5.0A-E3/61 Datasheet
Download the complete datasheet for Vishay SMAJ5.0A-E3/61 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

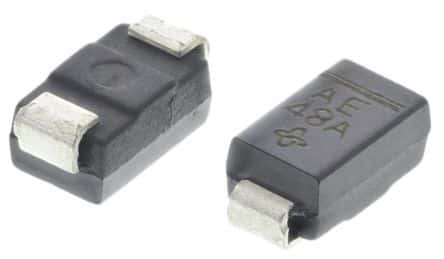

Product Images
