Unidirectional TVS Diode, 600W peak pulse power, 20V reverse standoff voltage, and 22.2V minimum breakdown voltage. Features a 32.4V clamping voltage and 1uA maximum reverse leakage current. This surface mount component, housed in a DO-214AA package, offers ESD protection and operates from -55°C to 150°C.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Power600W
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Vishay SMBJ20A-E3/52 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Vishay SMBJ20A-E3/52 technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 32.4V |
| Clamping Voltage-Max | 32.4V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 2.24mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 4.57mm |
| Max Breakdown Voltage | 24.5V |
| Min Breakdown Voltage | 22.2V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 18.5A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 20V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 18.5A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 22.2V |
| Reverse Standoff Voltage | 20V |
| RoHS Compliant | Yes |
| Series | TransZorb® |
| Termination | SMD/SMT |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SMBJ20A-E3/52 Datasheet
Download the complete datasheet for Vishay SMBJ20A-E3/52 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

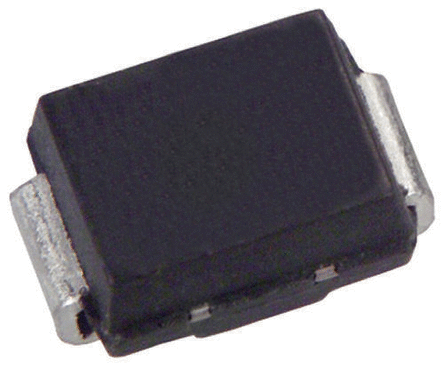

Product Images
