Unidirectional TVS Diode, 600W peak pulse power, 22V reverse standoff voltage, and 35.5V clamping voltage. Features a 1µA leakage current and 16.9A peak pulse current. This silicon transient voltage suppressor is housed in a surface-mount SMB package, operating from -55°C to 150°C. RoHS compliant and designed for power line protection.
PackageSMB
MountingSurface Mount
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Vishay SMBJ22A-E3/52 technical specifications.
General
| Package/Case | SMB |
| Clamping Voltage | 35.5V |
| Clamping Voltage-Max | 35.5V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.24mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 4.57mm |
| Max Breakdown Voltage | 26.9V |
| Min Breakdown Voltage | 24.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 16.9A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 22V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 16.9A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 24.4V |
| Reverse Standoff Voltage | 22V |
| RoHS Compliant | Yes |
| Series | TransZorb® |
| Termination | SMD/SMT |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SMBJ22A-E3/52 Datasheet
Download the complete datasheet for Vishay SMBJ22A-E3/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

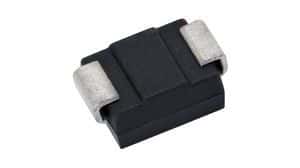

Product Images
