Bidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 33V reverse standoff voltage and a 600W peak pulse power rating. Offers a clamping voltage of 53.3V and a maximum surge current capability of 100A. Operates across a wide temperature range from -55°C to 150°C with a low leakage current of 1µA. Packaged in a DO-214AA (SMB) case, this RoHS compliant component provides robust protection.
PackageSMB
MountingSurface Mount
PolarityBidirectional
Power600W
Quick Jump:
Technical Specifications
Vishay SMBJ33CA-E3/5B technical specifications.
General
| Package/Case | SMB |
| Clamping Voltage | 53.3V |
| Clamping Voltage-Max | 53.3V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Height | 2.24mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 4.57mm |
| Max Breakdown Voltage | 40.6V |
| Min Breakdown Voltage | 36.7V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 33V |
| Package Quantity | 3200 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 11.3A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Dissipation | 600W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 36.7V |
| Reverse Standoff Voltage | 33V |
| RoHS Compliant | Yes |
| Series | TransZorb® |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SMBJ33CA-E3/5B Datasheet
Download the complete datasheet for Vishay SMBJ33CA-E3/5B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

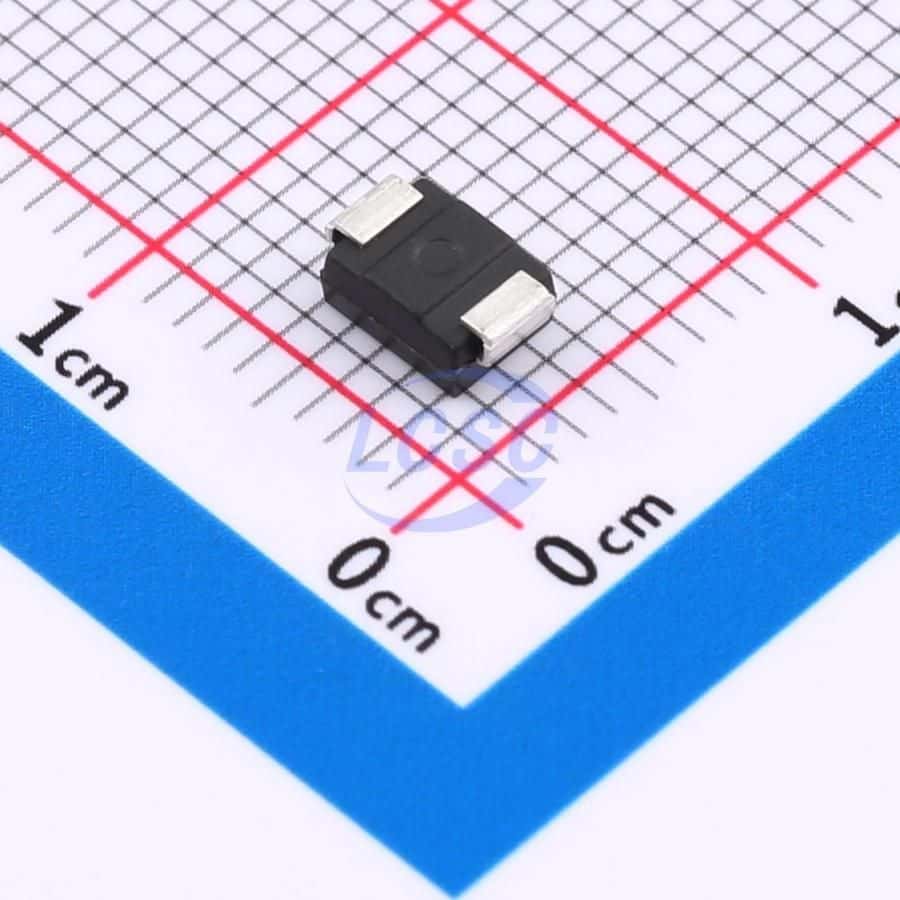

Product Images
