Unidirectional TVS diode for transient voltage suppression, featuring a 600W peak pulse power rating and 50A peak pulse current capability. This surface mount device operates at 7V reverse standoff voltage, with a breakdown voltage range of 7.78V to 8.6V and a 12V clamping voltage. It offers a maximum operating temperature of 150°C and a leakage current of 200uA. The component is housed in a DO-214AA (SMB) package and is RoHS compliant.
PackageSMB
MountingSurface Mount
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Vishay SMBJ7.0A-E3/52 technical specifications.
General
Package/Case
SMB
Clamping Voltage
12V
Clamping Voltage-Max
12V
Diode Type
ZENER
Direction
Unidirectional
Height
2.44mm
Lead Free
Lead Free
Leakage Current
200uA
Length
5.59mm
Max Breakdown Voltage
8.6V
Min Breakdown Voltage
7.78V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
600W
Max Reverse Leakage Current
200uA
Max Surge Current
3.3A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
7V
Package Quantity
750
Packaging
Tape and Reel
Peak Pulse Current
50A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
7.78V
Reverse Standoff Voltage
7V
RoHS Compliant
Yes
Series
TransZorb®
Termination
SMD/SMT
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Vishay SMBJ7.0A-E3/52 Datasheet
Download the complete datasheet for Vishay SMBJ7.0A-E3/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

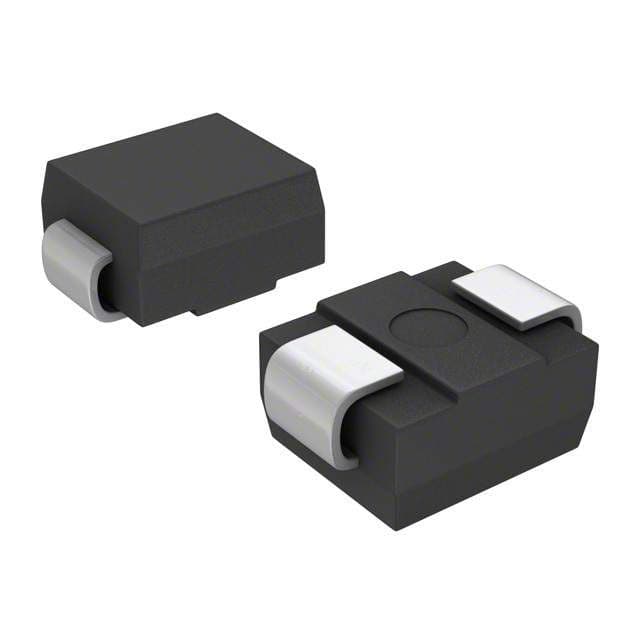

Product Images
