Unidirectional TVS Diode, 600W Peak Pulse Power, 70V Reverse Standoff Voltage, and 113V Clamping Voltage. Features 5.3A Peak Pulse Current, 1uA Leakage Current, and 86V Max Breakdown Voltage. Operates from -55°C to 150°C with a 600W Power Dissipation. Packaged in Tape and Reel for surface mount applications, this RoHS compliant component offers robust transient voltage suppression.
PackageSMB
MountingSurface Mount
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Vishay SMBJ70A-E3/52 technical specifications.
General
| Package/Case | SMB |
| Clamping Voltage | 113V |
| Clamping Voltage-Max | 113V |
| Direction | Unidirectional, Bidirectional |
| Height | 2.44mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 5.59mm |
| Max Breakdown Voltage | 86V |
| Min Breakdown Voltage | 77.8V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5.3A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Reverse Breakdown Voltage | 77.8V |
| Reverse Standoff Voltage | 70V |
| RoHS Compliant | Yes |
| Series | TransZorb® |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SMBJ70A-E3/52 Datasheet
Download the complete datasheet for Vishay SMBJ70A-E3/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

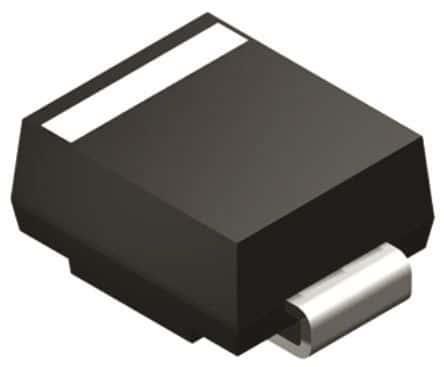

Product Images
