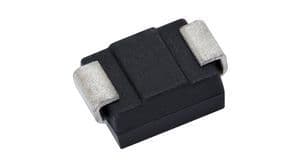

Unidirectional TVS Diode, 600W peak pulse power capability, designed for transient voltage suppression. Features a 8.5V reverse standoff voltage and a 9.44V minimum breakdown voltage, with a maximum clamping voltage of 14.4V. Operates across a wide temperature range from -55°C to 150°C, exhibiting a low leakage current of 20µA. Packaged in a surface-mount SMB (DO-214AA) case, this RoHS compliant component is supplied on tape and reel.
PackageSMB
MountingSurface Mount
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Vishay SMBJ8.5A-E3/52 technical specifications.
General
| Package/Case | SMB |
| Clamping Voltage | 14.4V |
| Clamping Voltage-Max | 14.4V |
| Direction | Unidirectional |
| Height | 2.24mm |
| Lead Free | Lead Free |
| Leakage Current | 20uA |
| Length | 4.57mm |
| Max Breakdown Voltage | 10.4V |
| Min Breakdown Voltage | 9.44V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 20uA |
| Max Surge Current | 3.3A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 8.5V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 41.7A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Reverse Breakdown Voltage | 9.44V |
| Reverse Standoff Voltage | 8.5V |
| RoHS Compliant | Yes |
| Series | TransZorb® |
| Termination | SMD/SMT |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SMBJ8.5A-E3/52 Datasheet
Download the complete datasheet for Vishay SMBJ8.5A-E3/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
