Bidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 15V reverse standoff voltage, 16.7V minimum breakdown voltage, and a 24.4V clamping voltage. Offers 1.5kW peak pulse power dissipation and 61.5A peak pulse current handling. Packaged in a DO-214AB (SMC) case, this RoHS compliant component operates from -55°C to 150°C with a low 1µA leakage current.
PackageDO-214AB
Voltage15V
Current615A
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay SMCJ15CA-E3/57T technical specifications.
General
Package/Case
DO-214AB
Clamping Voltage
24.4V
Clamping Voltage-Max
24.4V
Current
615A
Diode Type
ZENER
Direction
Bidirectional
Height
2.42mm
Lead Free
Lead Free
Leakage Current
1uA
Length
7.11mm
Max Breakdown Voltage
18.5V
Min Breakdown Voltage
16.7V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
6.5W
Max Reverse Leakage Current
1uA
Max Surge Current
61.5A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
15V
Package Quantity
850
Packaging
Tape and Reel
Peak Pulse Current
61.5A
Peak Pulse Power
1.5kW
Polarity
Bidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
16.7V
Reverse Standoff Voltage
15V
RoHS Compliant
Yes
Series
TransZorb®
Termination
SMD/SMT
Voltage
15V
DC Rated Voltage
15V
Weight
0.211g
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
Vishay SMCJ15CA-E3/57T Datasheet
Download the complete datasheet for Vishay SMCJ15CA-E3/57T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

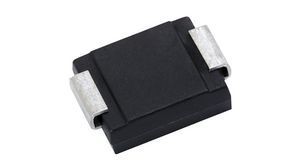

Product Images
