Unidirectional TVS diode with 1.5kW peak pulse power and 6.5W power dissipation. Features a clamping voltage of 48.4V and operates across a wide temperature range from -55°C to 150°C. Designed for voltage transient suppression.
PolarityUnidirectional
Power6.5W
Quick Jump:
Technical Specifications
Vishay SMCJ30A technical specifications.
General
| Clamping Voltage | 48.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 6.5W |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Vishay SMCJ30A Datasheet
Download the complete datasheet for Vishay SMCJ30A to view detailed technical specifications.
No datasheet is available for this part.

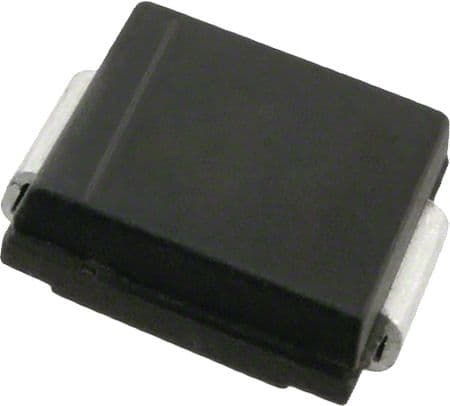

Product Images
