Bidirectional Transient Voltage Suppressor (TVS) diode with 1.5kW peak pulse power and 48V reverse standoff voltage. Features a 53.3V minimum breakdown voltage and a 77.4V clamping voltage. Designed for surface mount applications in a DO-214AB (SMC) package, operating from -55°C to 150°C with a low 1µA leakage current.
PackageSMC
MountingSurface Mount
PolarityBidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Vishay SMCJ48CA-E3/57T technical specifications.
General
| Package/Case | SMC |
| Clamping Voltage | 77.4V |
| Clamping Voltage-Max | 77.4V |
| Direction | Bidirectional |
| Height | 2.42mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 7.11mm |
| Max Breakdown Voltage | 58.9V |
| Min Breakdown Voltage | 53.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 163A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 48V |
| Package Quantity | 850 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 19.4A |
| Peak Pulse Power | 1.5kW |
| Polarity | Bidirectional |
| Power Dissipation | 1.5kW |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 53.3V |
| Reverse Standoff Voltage | 48V |
| RoHS Compliant | Yes |
| Series | SMCJ |
| Termination | SMD/SMT |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SMCJ48CA-E3/57T Datasheet
Download the complete datasheet for Vishay SMCJ48CA-E3/57T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

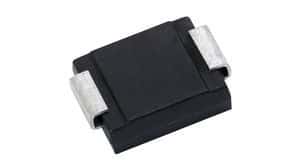

Product Images
