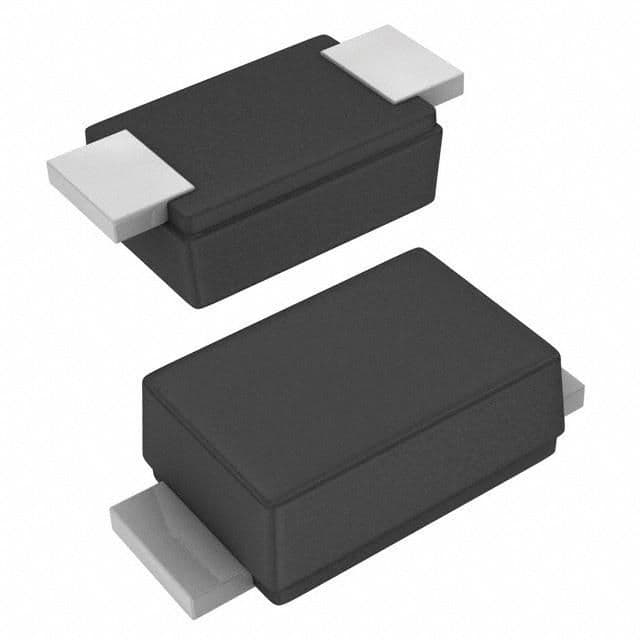

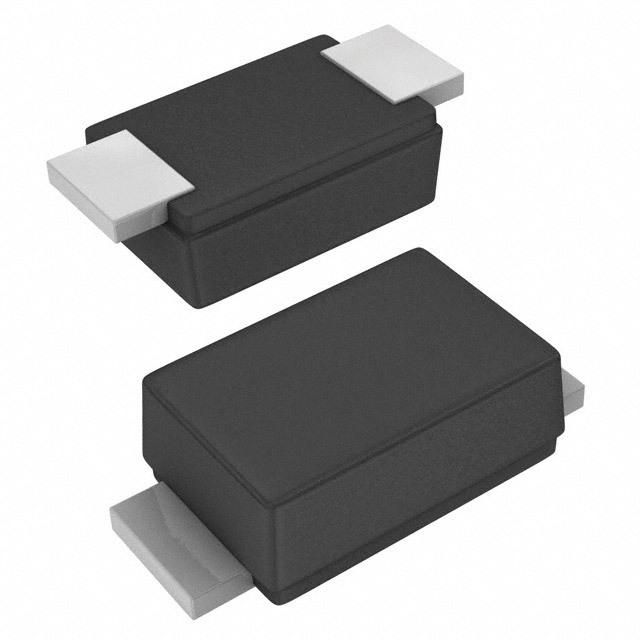

The SMF48A-E3-08 is a unidirectional Zener diode with a clamping voltage of 77.4V and a minimum breakdown voltage of 53.3V. It has a maximum operating temperature of 175°C and a minimum operating temperature of -65°C. The diode is surface mountable and packaged in a DO-219AB case. It is compliant with RoHS regulations and has a maximum power dissipation of 1kW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay SMF48A-E3-08 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DO-219AB |
| Clamping Voltage | 77.4V |
| Depth | 1.9mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Leakage Current | 100nA |
| Length | 2.9mm |
| Min Breakdown Voltage | 53.3V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1kW |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 48V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2.6A |
| Peak Pulse Power | 200W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Standoff Voltage | 48V |
| RoHS Compliant | Yes |
| Working Voltage | 48V |
| RoHS | Compliant |
