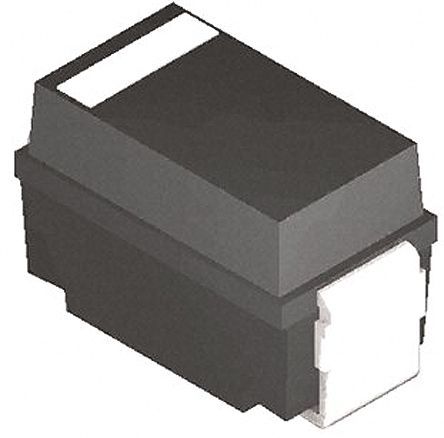

The SML4749A-E3/61 is a surface mount Zener diode from Vishay with a working voltage of 24V and a tolerance of 5%. It has a maximum power dissipation of 1W and a maximum reverse current of 5uA. The diode is packaged in an SMA package and is available on tape and reel. It operates over a temperature range of -65°C to 150°C and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay SML4749A-E3/61 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay SML4749A-E3/61 technical specifications.
| Package/Case | SMA |
| Height | 2.087mm |
| Impedance | 25R |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1W |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Width | 2.79mm |
| Working Voltage | 24V |
| Zener Current | 10.5mA |
| Zener Voltage | 24V |
| RoHS | Compliant |
