Surface mount metal film resistor, 1kΩ resistance with 1% tolerance. Features 0.25W power dissipation, 200V voltage rating, and a wide operating temperature range of -55°C to 125°C. Automotive AEC-Q200 qualified and RoHS compliant, this component offers anti-sulfur protection and a cylindrical MELF construction. Packaged in tape and reel for efficient assembly.
PackageConformal
Resistance1kR
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay SMM02040C1001FB300 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
1.4mm
Features
Automotive AEC-Q200, Anti-Sulfur
Height
1.4mm
Lead Free
Lead Free
Length
3.6mm
Max Operating Temperature
125°C
Max Power Dissipation
250mW
Military Standard
Not
Min Operating Temperature
-55°C
Number of Terminations
2
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Resistance
1kR
Resistance Tolerance
1%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
SMM0204
Tolerance
1%
Voltage Rating
200V
DC Rated Voltage
200V
Weight
0.000776oz
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Vishay SMM02040C1001FB300 Datasheet
Download the complete datasheet for Vishay SMM02040C1001FB300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

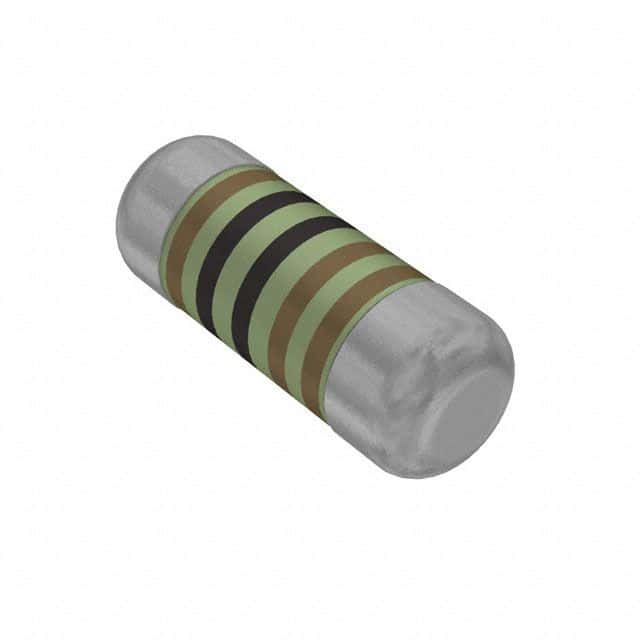

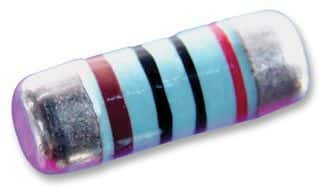

Product Images
