Surface mount rectifier diode with a 7A average rectified current and 10A forward current. Features a 60V maximum repetitive reverse voltage and a 280A maximum surge current. Operates across a temperature range of -55°C to 150°C. Packaged in a TO-277A (SMPC) plastic package, suitable for tape and reel mounting.
PackageTO-277A
Voltage60V
Current10A
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay SS10P6-M3/86A technical specifications.
General
Average Rectified Current
7A
Package/Case
TO-277A
Current
10A
Forward Current
10A
Height
0.031inch
Lead Free
Lead Free
Length
0.242inch
Max Forward Surge Current (Ifsm)
280A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
60V
Max Reverse Current
150uA
Max Reverse Leakage Current
150uA
Max Reverse Voltage (DC)
60V
Max Surge Current
280A
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
280A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
eSMP®
Voltage
60V
Width
0.171inch
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay SS10P6-M3/86A Datasheet
Download the complete datasheet for Vishay SS10P6-M3/86A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

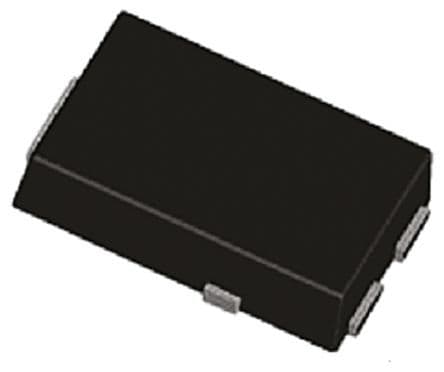

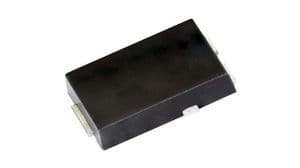

Product Images
