Surface mount tantalum capacitor, 15µF capacitance, 6.3V DC rated voltage, and 20% tolerance. Features a 1206 case code (3216 metric) with a maximum operating temperature of 105°C and a minimum of -55°C. This general-purpose component offers 200mΩ ESR, 9.4µA leakage current, and 620mA ripple current. Constructed with a flat profile, it measures 3.2mm in length, 1.6mm in width, and 1.6mm in height.
Package1206
Capacitance15uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay T55A156M6R3C0200 technical specifications.
General
Capacitance
15uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
200mR
Features
General Purpose
Height
1.6mm
Lead Free
Lead Free
Leakage Current
9.4uA
Length
3.2mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Cut Tape
Reach SVHC Compliant
Unknown
Ripple Current
620mA
RoHS Compliant
Yes
Series
vPolyTan™ T55
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay T55A156M6R3C0200 Datasheet
Download the complete datasheet for Vishay T55A156M6R3C0200 to view detailed technical specifications.
No datasheet is available for this part.

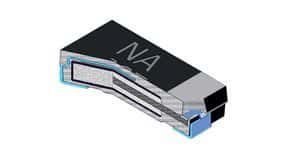

Product Images
