Technical Specifications
Vishay T83C105K050EZZL technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Package/Case | 2312 |
| Dissipation Factor | 4% |
| ESR (Equivalent Series Resistance) | 1.6R |
| Height - Seated (Max) | 0.11inch |
| Leakage Current | 500nA |
| Length | 0.236inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | No |
| Series | TANTAMOUNT® T83 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.005291oz |
| Width | 0.126inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Vishay T83C105K050EZZL Datasheet
Download the complete datasheet for Vishay T83C105K050EZZL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

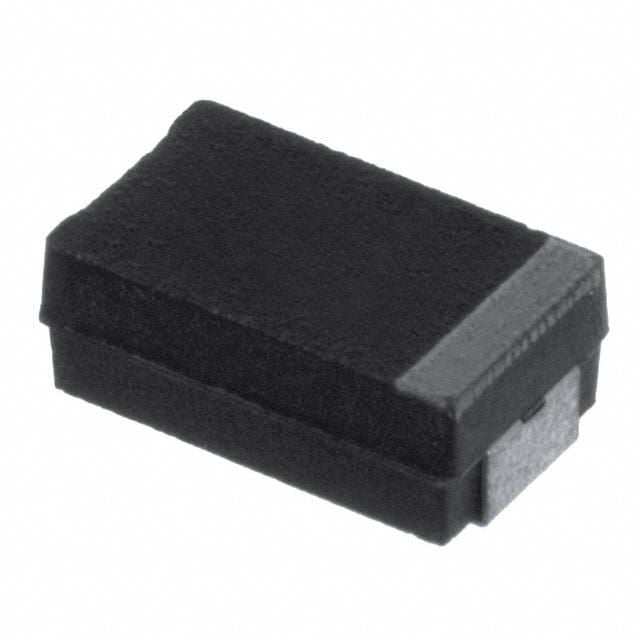

Product Images
