Cermet trimmer resistor, 20kΩ resistance with 10% tolerance, rated for 0.5W power dissipation and 250V AC/DC. Features 21 turns for precise adjustment, a linear taper, and PCB through-hole mounting. Operating temperature range from -55°C to 155°C. Rectangular package with 3 pins, 5mm depth, 9.7mm length, and 4.8mm width. RoHS compliant.
Resistance20kR
Voltage Rating250V
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Vishay T93YB203KT20 technical specifications.
General
Depth
5mm
Height
0.386inch
Lead Free
Lead Free
Length
9.7mm
Max Operating Temperature
155°C
Max Power Dissipation
500mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
PCB, Through Hole
Number of Turns
21
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
20kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
T93
Taper
Linear
Technology
CERMET
Termination
Pin
Tolerance
10%
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.028925oz
Width
0.189inch
Compliance
RoHS
Compliant
Datasheet
Vishay T93YB203KT20 Datasheet
Download the complete datasheet for Vishay T93YB203KT20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

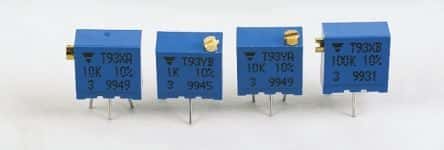

Product Images
