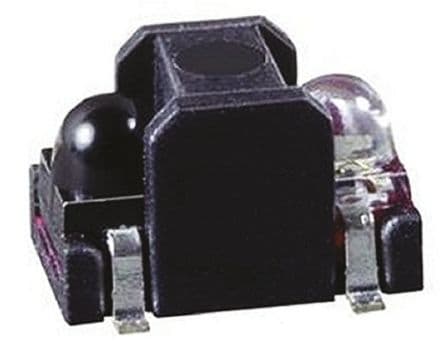

Reflective photointerrupter with a 940nm wavelength, featuring a 4-pin SMD package for surface mounting. This single-channel device offers a collector-emitter breakdown voltage of 60V and a maximum forward current of 100mA. With a response time of 800ns and a sensing distance up to 25mm, it operates within a temperature range of -40°C to 85°C. The component is RoHS compliant and supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TCND5000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 60V |
| Fall Time | 800ns |
| Forward Current | 100mA |
| Height | 3.75mm |
| Input Current | 50mA |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 190mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 110nA |
| Output Voltage | 60V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 190mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 800ns |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Sensing Distance | 25mm |
| Termination | SMD/SMT |
| Wavelength | 940nm |
| Width | 3.7mm |
| RoHS | Compliant |
