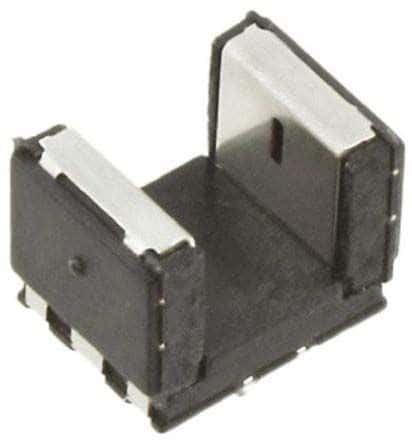

Transmissive photointerrupter featuring a phototransistor output, designed for surface mount applications. This component offers a 20V collector-emitter breakdown voltage and a 20mA maximum collector current. Operating within a -40°C to 85°C temperature range, it utilizes a 950nm wavelength and has a 30µs response time. Packaged in a 6-pin SMD for tape and reel distribution, it boasts 75mW power dissipation and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TCPT1300X01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay TCPT1300X01 technical specifications.
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 20V |
| Collector Emitter Voltage (VCEO) | 20V |
| Collector-emitter Voltage-Max | 20V |
| Color | Green |
| Fall Time | 150000ns |
| Forward Current | 25mA |
| Height | 4mm |
| Input Current | 15mA |
| Lead Free | Lead Free |
| Length | 4mm |
| Luminous Intensity | 4mcd |
| Max Breakdown Voltage | 20V |
| Max Collector Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 75mW |
| Mount | Surface Mount, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Configuration | Phototransistor |
| Output Type | Phototransistor |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 30us |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Wavelength | 950nm |
| Width | 5mm |
| RoHS | Compliant |
