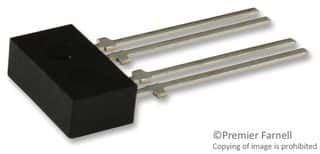

Reflective phototransistor with a 32V collector-emitter breakdown voltage and 50mA forward current. Features a 950nm wavelength, 4mm sensing distance, and operates within a -40°C to 85°C temperature range. This 1-channel, 1-element optical sensor is RoHS compliant, lead-free, and packaged in bulk for through-hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TCRT1000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Collector Emitter Breakdown Voltage | 32V |
| Collector Emitter Voltage (VCEO) | 32V |
| Collector-emitter Voltage-Max | 32V |
| Contact Plating | Silver, Tin |
| Forward Current | 50mA |
| Height | 4mm |
| Input Current | 50mA |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Collector Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Type | Phototransistor |
| Output Voltage | 32V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Sensing Distance | 4mm |
| DC Rated Voltage | 32V |
| Wavelength | 950nm |
| Width | 2.5mm |
| RoHS | Compliant |
