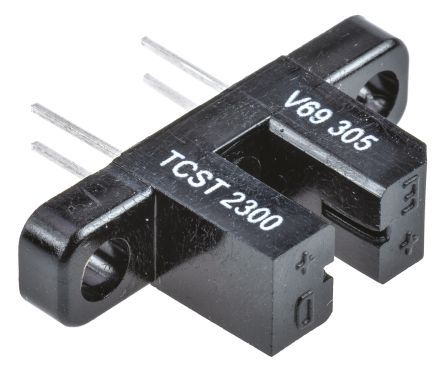

Transmissive photointerrupter featuring a phototransistor output. Collector-emitter breakdown voltage is 70V with a maximum collector current of 100mA. Operating temperature range spans -55°C to 85°C, with a 250mW power dissipation. This component offers a 950nm wavelength and a 60mA forward current, with a 2.5% current transfer ratio and 8µs response time. Designed for through-hole mounting, it utilizes tin/silver contact plating and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TCST2300 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay TCST2300 technical specifications.
| Collector Emitter Breakdown Voltage | 70V |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 70V |
| Contact Plating | Tin, Silver |
| Current Transfer Ratio | 2.5% |
| Fall Time | 8us |
| Forward Current | 60mA |
| Height | 11.1mm |
| Input Current | 60mA |
| Lead Free | Lead Free |
| Length | 24.5mm |
| Max Breakdown Voltage | 70V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Configuration | Phototransistor |
| Output Type | Phototransistor |
| Package Quantity | 85 |
| Packaging | Rail/Tube |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 8us |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage (DC) | 6V |
| RoHS Compliant | Yes |
| Sensing Distance | 0.122inch |
| DC Rated Voltage | 1.25V |
| Wavelength | 950nm |
| Width | 6.3mm |
| RoHS | Compliant |
