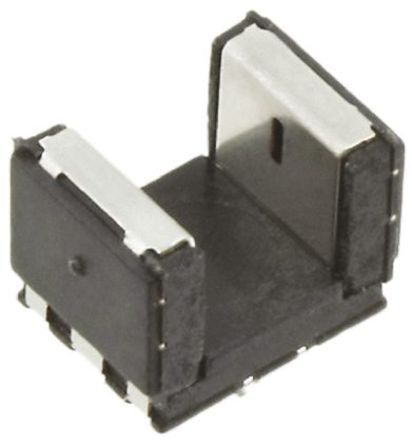

Transmissive photointerrupter featuring a phototransistor output. This general-purpose optical sensor offers a 20V collector-emitter breakdown voltage and a 20mA maximum collector current. Designed for surface mount applications, it operates within a temperature range of -40°C to 85°C and has a response time of 30µs. The component utilizes a 950nm wavelength and is packaged in a 6-pin SMD for tape and reel delivery.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TCUT1300X01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay TCUT1300X01 technical specifications.
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 20V |
| Collector Emitter Voltage (VCEO) | 20V |
| Collector-emitter Voltage-Max | 20V |
| Fall Time | 150000ns |
| Forward Current | 25mA |
| Height | 4mm |
| Input Current | 15mA |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Breakdown Voltage | 20V |
| Max Collector Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Configuration | Phototransistor |
| Output Current | 20mA |
| Output Voltage | 20V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 30us |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Wavelength | 950nm |
| Width | 5.5mm |
| RoHS | Compliant |
