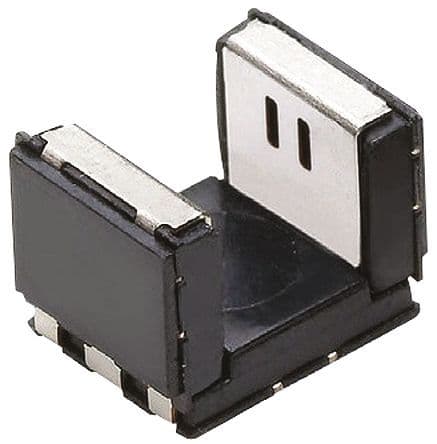

Transmissive photointerrupter with phototransistor output, featuring a 3mm slot width and 6-pin SMD/SMT package for surface mounting. Operates with a forward current of 25mA and a collector-emitter voltage of 20V, offering a maximum collector current of 20mA. Exhibits a response time of 16µs, with a wavelength of 950nm. Designed for automotive applications, this lead-free and RoHS compliant component functions across an operating temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TCUT1350X01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 20V |
| Collector Emitter Voltage (VCEO) | 20V |
| Collector-emitter Voltage-Max | 20V |
| Fall Time | 16us |
| Forward Current | 25mA |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 20V |
| Max Collector Current | 20mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 1.4V |
| Min Supply Voltage (DC) | 1V |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Output Configuration | Phototransistor |
| Output Current | 20mA |
| Packaging | Tape and Reel |
| Power Dissipation | 37.5mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 16us |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Wavelength | 950nm |
| RoHS | Compliant |
