The TEMD1000-GS15 is a surface mount linear voltage regulator with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is packaged in a cut tape format and has a width of 2mm and a length of 2.5mm. The device is designed for use on a printed circuit board and is suitable for applications where a small footprint is required.
PackageSMD/SMT
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay TEMD1000-GS15 technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 2.7mm |
| Length | 2.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TEMD1000-GS15 Datasheet
Download the complete datasheet for Vishay TEMD1000-GS15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

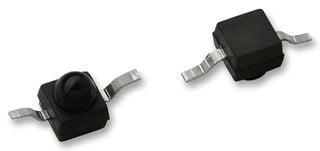

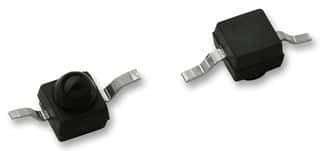

Product Images
