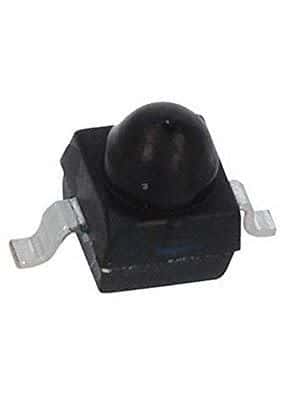

PIN Photodiode Module, 940nm wavelength, featuring 0.6A/W responsivity and a 4ns response time. This surface mount component offers a 60V maximum reverse voltage and 50mA forward current, with a power dissipation of 75mW. Operating temperature range spans from -40°C to 85°C. Packaged in Tape and Reel, this RoHS compliant module is designed for efficient light detection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TEMD1020 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay TEMD1020 technical specifications.
| Package/Case | SMD/SMT |
| Diode Type | PIN |
| Fall Time | 4ns |
| Forward Current | 50mA |
| Height | 2.7mm |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 75mW |
| Max Reverse Voltage (DC) | 60V |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 4ns |
| Responsivity | 0.6A/W |
| Reverse Breakdown Voltage | 60V |
| Reverse Voltage (DC) | 60V |
| RoHS Compliant | Yes |
| Viewing Angle | 30° |
| Wavelength | 940nm |
| Width | 2mm |
| RoHS | Compliant |
