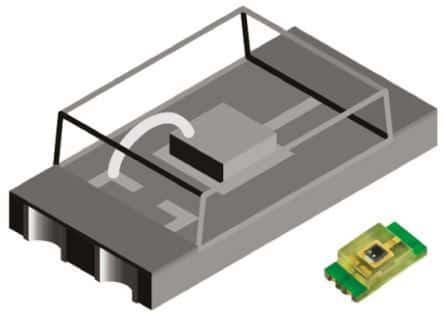

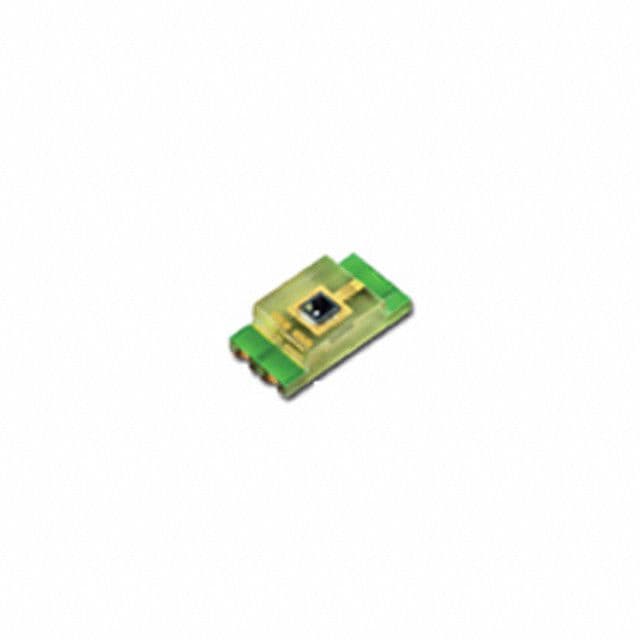

Automotive-grade, surface-mount ambient light sensor with analog output. Features a 6V collector-emitter breakdown voltage and a maximum collector current of 20mA. Operating voltage is 5V, with a power dissipation of 100mW. Encased in a 1206 (3216 metric) SMD package, this NPN sensor offers a 60° viewing angle and a peak sensitivity wavelength of 570nm. Operating temperature range is -40°C to 100°C, and it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TEMT6000X01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Collector Emitter Breakdown Voltage | 6V |
| Collector Emitter Voltage (VCEO) | 6V |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Lens Style | Flat |
| Max Breakdown Voltage | 6V |
| Max Collector Current | 20mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Orientation | Top View |
| Output Type | Analog |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Consumption | 100mW |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Viewing Angle | 60° |
| Wavelength | 570nm |
| Width | 2mm |
| RoHS | Compliant |
