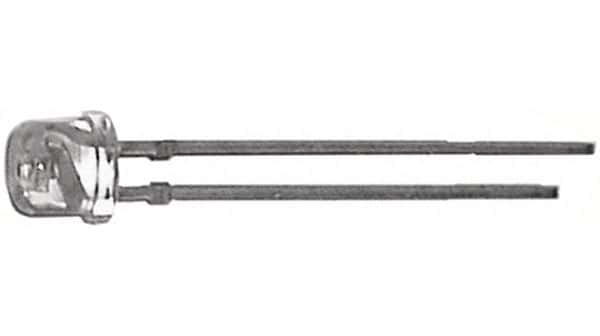

Analog output ambient light sensor with a 50° viewing angle and 570nm wavelength. Features a 2-pin radial package, through-hole mount, and NPN polarity. Operates with a 5V supply voltage and has a maximum collector current of 20mA. Suitable for temperatures from -40°C to 85°C, with 100mW power dissipation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TEPT5700 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Collector Emitter Breakdown Voltage | 6V |
| Collector Emitter Voltage (VCEO) | 6V |
| Height | 5mm |
| Lead Free | Lead Free |
| Length | 5.7mm |
| Lens Style | Flat |
| Max Collector Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Orientation | Top View |
| Output Type | Analog |
| Packaging | Bulk |
| Polarity | NPN |
| Power Consumption | 100mW |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Viewing Angle | 50° |
| Wavelength | 570nm |
| Width | 5.7mm |
| RoHS | Compliant |
Download the complete datasheet for Vishay TEPT5700 to view detailed technical specifications.
