Surface mount IrDA transceiver supporting 115.2Kbps data rates. Features a 900nm wavelength and 100ns fall time. Operates with supply voltages from 2.4V to 5.5V, consuming 75µA nominal supply current. Packaged in a 6-pin SMD/SMT case, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageSMD/SMT
Storage1.9mm
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay TFBS4711-TR3 technical specifications.
General
Package/Case
SMD/SMT
Data Rate
115.2Kbps
Fall Time
100ns
Forward Current
80mA
Height
3mm
Lead Free
Lead Free
Length
6mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.4V
Mount
Surface Mount
Nominal Supply Current
75A
Orientation
Side View
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Size
1.9mm
Wavelength
900nm
Width
1.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay TFBS4711-TR3 Datasheet
Download the complete datasheet for Vishay TFBS4711-TR3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

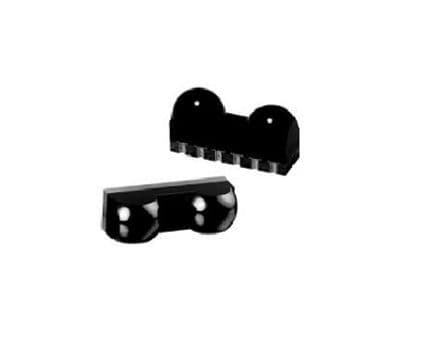

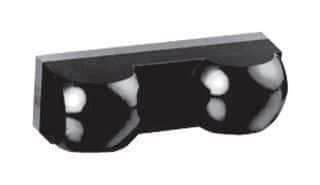

Product Images
