Surface mount IrDA transceiver supporting 115.2Kbps data rates. Features a 2.4V to 5.5V supply voltage range and 300mA forward current. Operates from -25°C to 85°C with a 300ns fall time. This RoHS compliant component utilizes 850nm wavelength infrared technology.
PackageSMD/SMT
Current600mA
Storage1.9mm
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay TFBS4711-TT1 technical specifications.
General
| Package/Case | SMD/SMT |
| Data Rate | 115.2Kbps |
| Fall Time | 300ns |
| Forward Current | 300mA |
| Height | 3mm |
| Input Current | 10mA |
| Interface | IrDA |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Orientation | Top View |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Size | 1.9mm |
| Supply Current | 600mA |
| Touchscreen | Infrared (IR) |
| Wavelength | 850nm |
| Width | 1.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TFBS4711-TT1 Datasheet
Download the complete datasheet for Vishay TFBS4711-TT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

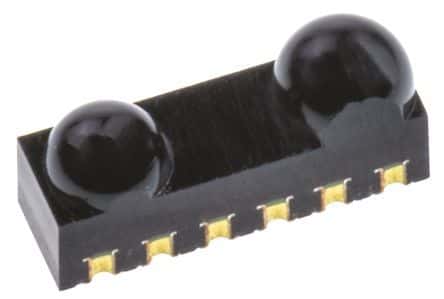

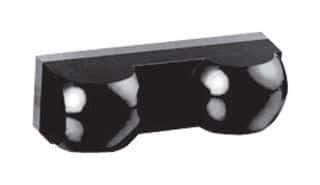

Product Images
