IrDA transceiver module supporting 115.2Kbps data rates. Features a 2.4V to 5.5V operating voltage range and 900nm wavelength. This surface mount component offers a 4mm x 4.2mm x 4.7mm ultra small profile package with a fall time of 300ns. Operates from -30°C to 85°C with a forward current of 80mA and a low supply current of 90uA. RoHS compliant and lead-free.
PackageModule
Voltage5V
Current90uA
Storage4mm
Quick Jump:
Technical Specifications
Vishay TFDU4101-TT3 technical specifications.
General
| Package/Case | Module |
| Data Rate | 115.2Kbps |
| Fall Time | 300ns |
| Forward Current | 80mA |
| Height | 4.7mm |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Orientation | Top View |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Size | 4mm |
| Supply Current | 90uA |
| Voltage | 5V |
| Wavelength | 900nm |
| Width | 4.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TFDU4101-TT3 Datasheet
Download the complete datasheet for Vishay TFDU4101-TT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

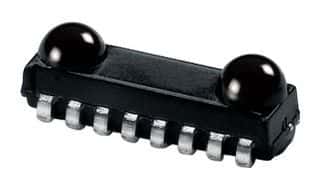

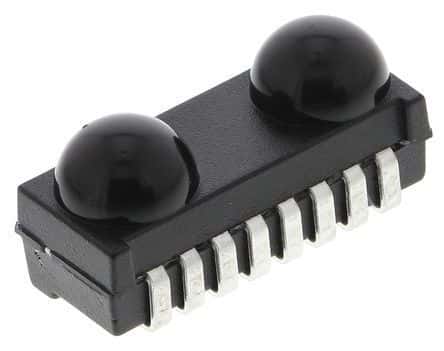

Product Images
