Surface mount IrDA transceiver supporting 115.2Kbps data rates. Operates from a 2.4V to 5.5V supply voltage with a low 70µA supply current. Features a compact 2.5mm SMD package suitable for top-view orientation. Rated for operation between -30°C and 85°C, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageSMD/SMT
Current70uA
Storage2.5mm
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay TFDU4301-TT1 technical specifications.
General
| Package/Case | SMD/SMT |
| Data Rate | 115.2Kbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Orientation | Top View |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Size | 2.5mm |
| Supply Current | 70uA |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TFDU4301-TT1 Datasheet
Download the complete datasheet for Vishay TFDU4301-TT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

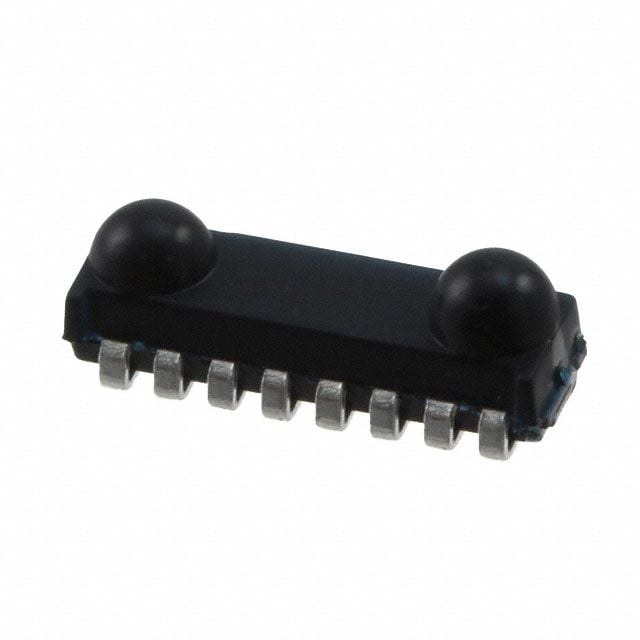

Product Images
