0805 SMD/SMT chip resistor featuring 2.49kR resistance with a tight 0.1% tolerance. This thin film resistor offers a 1/8W (200mW) power rating and a 75V DC voltage rating. Constructed with a rectangular 0805 (2012 metric) case, it boasts moisture resistance, automotive AEC-Q200 qualification, and anti-sulfur properties. Operating across a wide temperature range of -55°C to 125°C, this lead-free, RoHS-compliant component is supplied on tape and reel.
Package0805
Resistance2.49kR
Voltage Rating75V
Quick Jump:
Technical Specifications
Vishay TNPW08052K49BEEA technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Military Standard | Not |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 2.49kR |
| Resistance Tolerance | 0.1% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | TNPW e3 |
| Size Code | 0805 |
| Technology | THIN FILM |
| Termination | SMD/SMT |
| Voltage Rating | 75V |
| DC Rated Voltage | 75V |
| Weight | 0.000194oz |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TNPW08052K49BEEA Datasheet
Download the complete datasheet for Vishay TNPW08052K49BEEA to view detailed technical specifications.
No datasheet is available for this part.

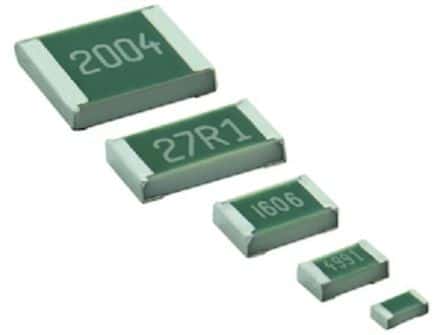

Product Images
