Solid tantalum capacitor, 22µF capacitance, 10V DC rated voltage, 10% tolerance. Features a 1206 surface mount case code (3216 metric) with a flat construction, 1.6mm height, 3.2mm length, and 1.6mm width. Offers 8% dissipation factor, 1R ESR, 2.2µA leakage current, and 270mA ripple current. Operates from -55°C to 125°C, with RoHS compliance.
Package1206
Voltage10V
Capacitance22uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Vishay TR3A226K010C1000 technical specifications.
General
Capacitance
22uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
1R
Features
General Purpose
Height
1.6mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Leakage Current
2.2uA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
8
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
270mA
RoHS Compliant
Yes
Series
TANTAMOUNT® TR3
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Weight
0.000571oz
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Vishay TR3A226K010C1000 Datasheet
Download the complete datasheet for Vishay TR3A226K010C1000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

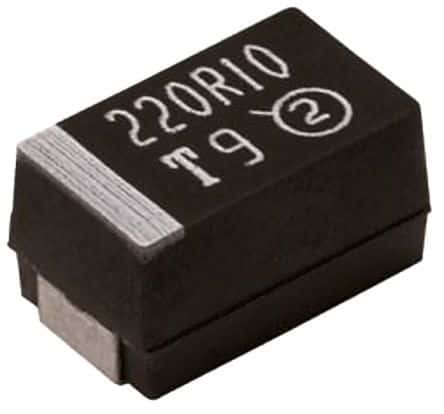

Product Images
