Solid Tantalum Capacitor, 68µF capacitance, 6.3V DC voltage rating, 10% tolerance. Features 250mΩ ESR, 4.3µA leakage current, and 580mA ripple current. Operating temperature range from -55°C to 125°C. Surface mountable in a 3528 metric case code (1411 imperial), with dimensions of 3.5mm (L) x 2.8mm (D) x 2.1mm (H). Packaged on tape and reel.
Package1411
Capacitance68uF
Voltage Rating6.3V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay TR3B686K6R3C0250 technical specifications.
General
| Capacitance | 68uF |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 1411 |
| Construction | Flat |
| Depth | 2.8mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 250mR |
| Features | General Purpose |
| Height | 2.1mm |
| Height - Seated (Max) | 0.083inch |
| Lead Free | Lead Free |
| Leakage Current | 4.3uA |
| Length | 3.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Q Factor | 6 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 580mA |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT® TR3 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 0.11inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TR3B686K6R3C0250 Datasheet
Download the complete datasheet for Vishay TR3B686K6R3C0250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

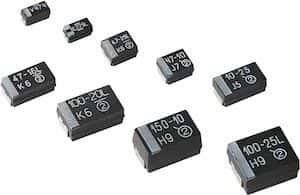

Product Images
