Solid, polarized tantalum capacitor with 100uF capacitance and 10% tolerance. Features a 6.3V DC rated voltage, 300mR ESR, and 6.3uA leakage current. Surface mountable in a 2312 (6032 metric) case code, this component operates from -55°C to 125°C with a ripple current of 610mA. RoHS compliant.
PackageMolded
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Vishay TR3C107K6R3C0300 technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 300mR |
| Features | General Purpose |
| Height | 2.5mm |
| Height - Seated (Max) | 0.11inch |
| Leakage Current | 6.3uA |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 610mA |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT® TR3 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 0.126inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TR3C107K6R3C0300 Datasheet
Download the complete datasheet for Vishay TR3C107K6R3C0300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

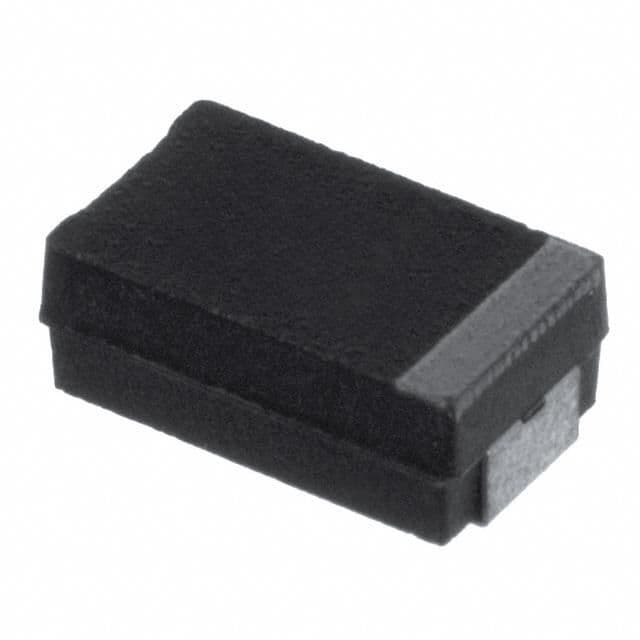

Product Images
