Solid tantalum capacitor with 68µF capacitance and 6.3V voltage rating. Features 20% tolerance, 275mΩ ESR, and a maximum operating temperature of 125°C. Surface mountable in a 6032 metric case code (2412 imperial), measuring 6mm x 3.2mm x 2.8mm. Designed for general purpose applications, it offers a ripple current of 630mA and is lead-free and RoHS compliant.
PackageMolded
Capacitance68uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay TR3C686M6R3C0275 technical specifications.
General
| Capacitance | 68uF |
| Case Code (Imperial) | 2412 |
| Case Code (Metric) | 6032 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 3.2mm |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 275mR |
| Features | General Purpose |
| Height | 2.8mm |
| Lead Free | Lead Free |
| Leakage Current | 4.3uA |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Ripple Current | 630mA |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT®, TR3 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TR3C686M6R3C0275 Datasheet
Download the complete datasheet for Vishay TR3C686M6R3C0275 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

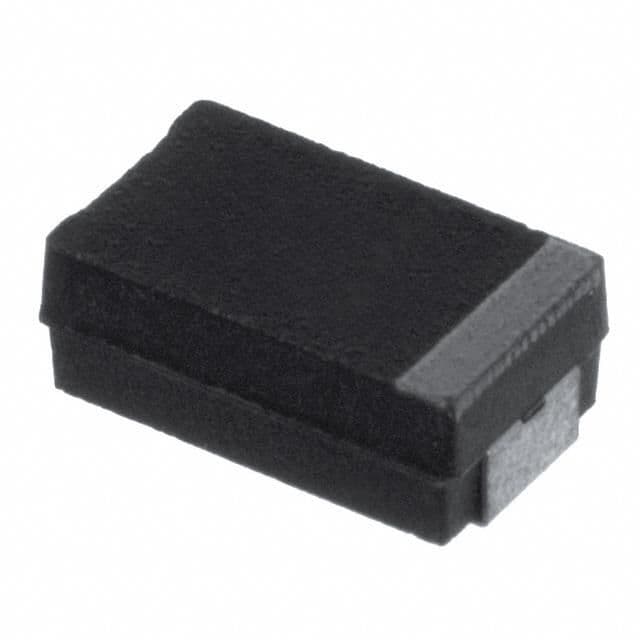

Product Images
