Solid, polarized tantalum capacitor for general-purpose applications. Features 10µF capacitance and 35V DC rated voltage. Surface mountable in a 2917 (7343 metric) chip package with 250mΩ ESR and 3.5µA leakage current. Operates from -55°C to 125°C with 770mA ripple current capability. RoHS compliant.
Package2917
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Vishay TR3D106K035C0250 technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 250mR |
| Features | General Purpose |
| Height | 2.8mm |
| Height - Seated (Max) | 0.122inch |
| Lead Free | Lead Free |
| Leakage Current | 3.5uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Q Factor | 6 |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 770mA |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT® TR3 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Width | 0.169inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TR3D106K035C0250 Datasheet
Download the complete datasheet for Vishay TR3D106K035C0250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

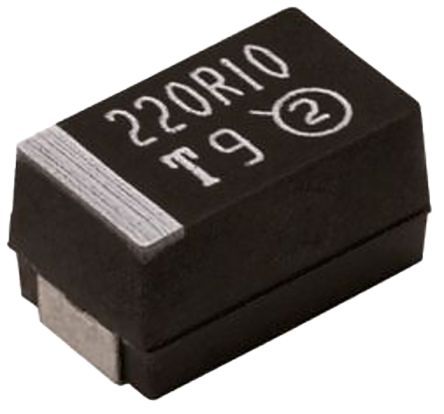

Product Images
