Solid, polarized tantalum capacitor with 100µF capacitance and 16V DC rating. Features 125mΩ ESR, 1.1A ripple current, and 16µA leakage current. Surface mountable in a 2917 (7343 metric) chip case, operating from -55°C to +125°C. RoHS compliant with 10% tolerance.
Package2917
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Vishay TR3D107K016C0125 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
125mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Leakage Current
16uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
1.1A
RoHS Compliant
Yes
Series
TANTAMOUNT®, TR3
Termination
SMD/SMT
Tolerance
10%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Vishay TR3D107K016C0125 Datasheet
Download the complete datasheet for Vishay TR3D107K016C0125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

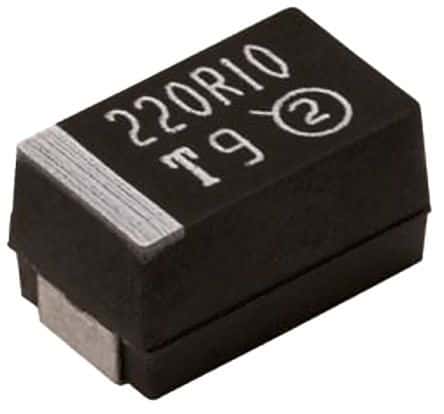

Product Images
