Solid Tantalum Capacitor, 47uF capacitance, 20V DC rated voltage, 10% tolerance. Features 100mR ESR, 1.22A ripple current, and 9.4uA leakage current. Operates from -55°C to 125°C. Surface mount package in 2917 (7343 metric) case code, 4.3mm depth, 7.3mm length, and 2.8mm height. RoHS compliant.
Package2917
Capacitance47uF
Voltage Rating20V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay TR3D476K020C0100 technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Leakage Current
9.4uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Reach SVHC Compliant
Unknown
Ripple Current
1.22A
RoHS Compliant
Yes
Series
TANTAMOUNT® TR3
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
20V
DC Rated Voltage
20V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Vishay TR3D476K020C0100 Datasheet
Download the complete datasheet for Vishay TR3D476K020C0100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

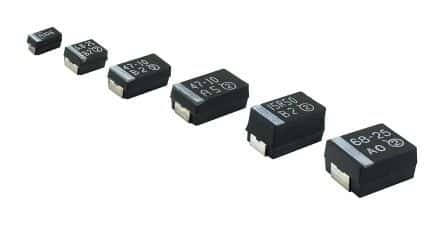

Product Images
