Solid, polarized tantalum capacitor with 47µF capacitance and 25V DC rated voltage. Features 250mΩ ESR, 8% dissipation factor, and 11.8µA leakage current. Surface mountable in a 2917 (7343 metric) case code, operating from -55°C to 125°C. RoHS compliant with 10% tolerance and 770mA ripple current.
Package2917
Voltage25V
Capacitance47uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Vishay TR3D476K025C0250 technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 250mR |
| Features | General Purpose |
| Height | 2.8mm |
| Lead Free | Lead Free |
| Leakage Current | 11.8uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 770mA |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT®, TR3 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TR3D476K025C0250 Datasheet
Download the complete datasheet for Vishay TR3D476K025C0250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

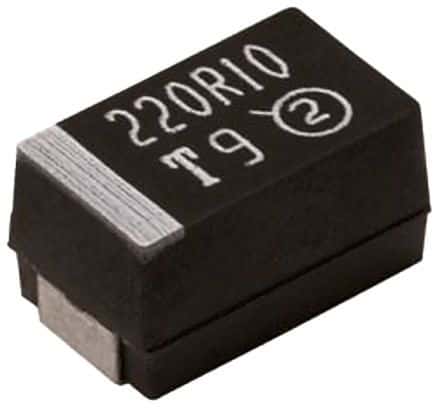

Product Images
