40kHz IR remote receiver IC with a 45° viewing angle and 45m sensing distance. Features a 2.5V to 5.5V operating supply voltage range and 350µA supply current. This through-hole mount component has a 5.8mm width, 10mm length, and 12.5mm height, operating from -25°C to 85°C. RoHS compliant with 5mA output current.
Frequency40kHz
Current350uA
MountingThrough Hole
Power10mW
Quick Jump:
Technical Specifications
Vishay TSOP31240 technical specifications.
General
| Frequency | 40kHz |
| Height | 12.5mm |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.5V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Operating Supply Current | 350uA |
| Orientation | Side View |
| Output Current | 5mA |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Power Dissipation | 10mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Distance | 45m |
| Supply Current | 350uA |
| Viewing Angle | 45° |
| Wavelength | 950nm |
| Width | 5.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TSOP31240 Datasheet
Download the complete datasheet for Vishay TSOP31240 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

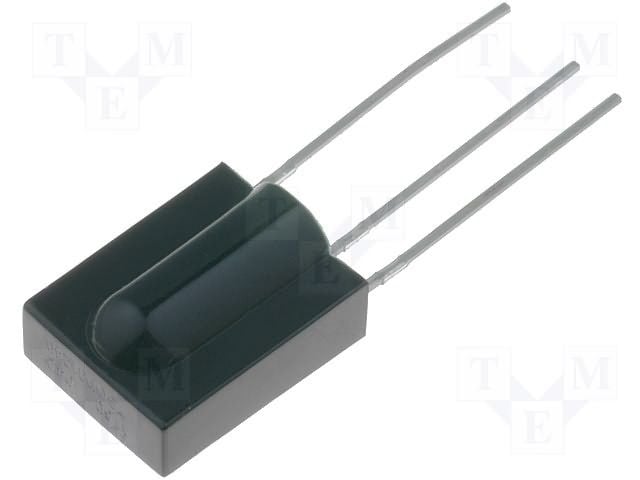

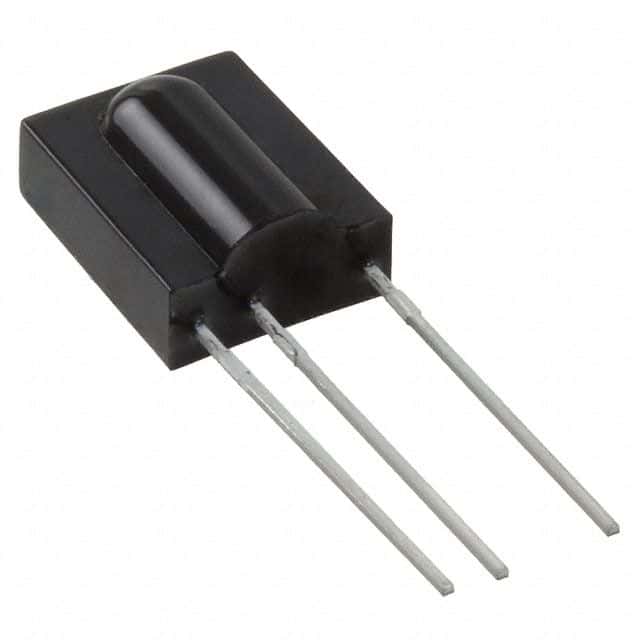

Product Images
