Unidirectional TVS Diode for transient voltage suppression. Features 54W peak pulse power and 3A peak pulse current. Offers 5.5V reverse standoff voltage, 52V clamping voltage, and 40pF capacitance. Designed for surface mount applications with a 6-pin LLP75-7L package. Operating temperature range from -40°C to 125°C. Provides ESD protection and power line protection.
Capacitance40pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VBUS053CZ-HAF-G-08 technical specifications.
General
| Capacitance | 40pF |
| Clamping Voltage | 52V |
| Clamping Voltage-Max | 4.1V |
| Depth | 1.65mm |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 1.65mm |
| Max Breakdown Voltage | 10V |
| Min Breakdown Voltage | 6.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 3 |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 3 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 3A |
| Peak Pulse Power | 54W |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1.65mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VBUS053CZ-HAF-G-08 Datasheet
Download the complete datasheet for Vishay VBUS053CZ-HAF-G-08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

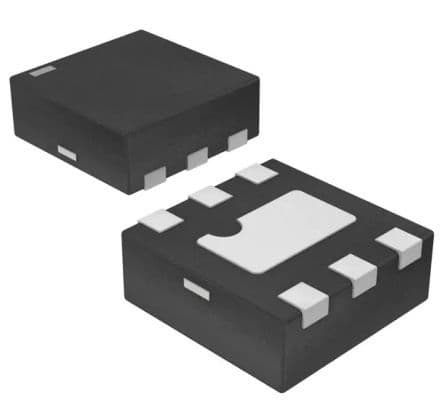

Product Images
