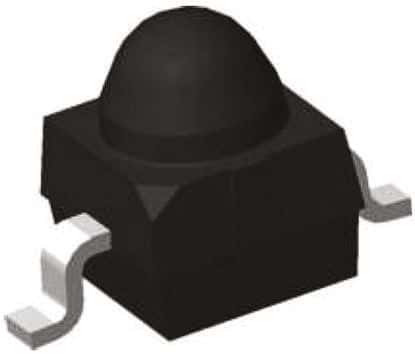

Automotive-grade NPN phototransistor for surface mount applications, featuring a 20V collector-emitter breakdown voltage and 50mA maximum collector current. This silicon phototransistor operates at an 860nm wavelength with a 15° viewing angle, housed in a 2.3mm x 2.77mm SMD package with a domed black lens. Designed for a wide temperature range of -40°C to 100°C, it offers 100mW maximum power dissipation and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay VEMT2020X01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay VEMT2020X01 technical specifications.
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 20V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 20V |
| Collector-emitter Voltage-Max | 20V |
| Height | 2.77mm |
| Lead Free | Lead Free |
| Length | 2.3mm |
| Lens Color | Black |
| Lens Style | Domed |
| Max Breakdown Voltage | 20V |
| Max Collector Current | 50mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Orientation | Top View |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Consumption | 100mW |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Viewing Angle | 15° |
| Wavelength | 860nm |
| Width | 2.3mm |
| RoHS | Compliant |
