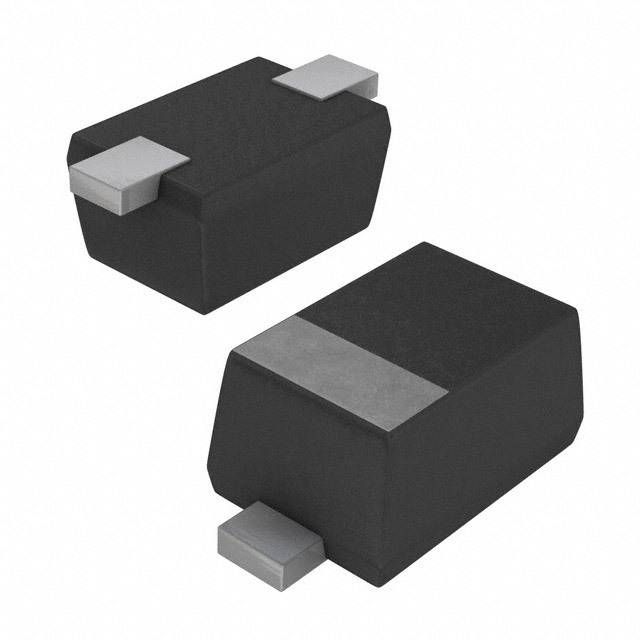

Unidirectional transient voltage suppressor diode with a 1V reverse standoff voltage and 1.5V minimum breakdown voltage. Features a 9V clamping voltage and 7A peak pulse current capability, with a maximum power dissipation of 63W. This surface mount device offers 180pF capacitance and operates within a temperature range of -40°C to 125°C. Designed for single, unidirectional channel protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay VESD01-02V-G-08 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 180pF |
| Clamping Voltage | 9V |
| Current Rating | 7A |
| Depth | 0.9mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Leakage Current | 100uA |
| Length | 1.3mm |
| Min Breakdown Voltage | 1.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 63W |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 7A |
| Peak Pulse Power | 63W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Standoff Voltage | 1V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 1V |
| RoHS | Compliant |
