Unidirectional transient voltage suppressor diode offering 3V reverse standoff voltage and 12V clamping voltage. Features a 9A peak pulse current rating and 108W peak pulse power dissipation. This surface mount device provides ESD protection with a low leakage current of 20uA and a capacitance of 110pF. Operating temperature range is -40°C to 125°C.
Capacitance110pF
Voltage Rating3V
Current Rating9A
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VESD03-02V-G-08 technical specifications.
General
| Capacitance | 110pF |
| Clamping Voltage | 12V |
| Current Rating | 9A |
| Depth | 0.9mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 0.6mm |
| Leakage Current | 20uA |
| Length | 1.3mm |
| Min Breakdown Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 108W |
| Max Reverse Leakage Current | 100uA |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 9A |
| Peak Pulse Power | 108W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 3V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 0.9mm |
| Working Voltage | 3V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VESD03-02V-G-08 Datasheet
Download the complete datasheet for Vishay VESD03-02V-G-08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

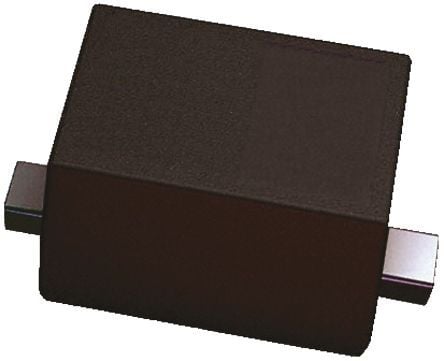

Product Images
