Unidirectional transient voltage suppressor diode with a 5V reverse standoff voltage and 6.5V minimum breakdown voltage. Features a 20V clamping voltage, 4A current rating, and 6A peak pulse current. Offers 120W peak pulse power dissipation and low 100nA leakage current. This surface mount device has a capacitance of 55pF and operates within a temperature range of -40°C to 125°C.
Capacitance55pF
Voltage Rating5V
Current Rating4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VESD05-02V-G-08 technical specifications.
General
| Capacitance | 55pF |
| Clamping Voltage | 20V |
| Current Rating | 4A |
| Depth | 0.9mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 1.3mm |
| Min Breakdown Voltage | 6.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 120W |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 6A |
| Peak Pulse Power | 120W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VESD05-02V-G-08 Datasheet
Download the complete datasheet for Vishay VESD05-02V-G-08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

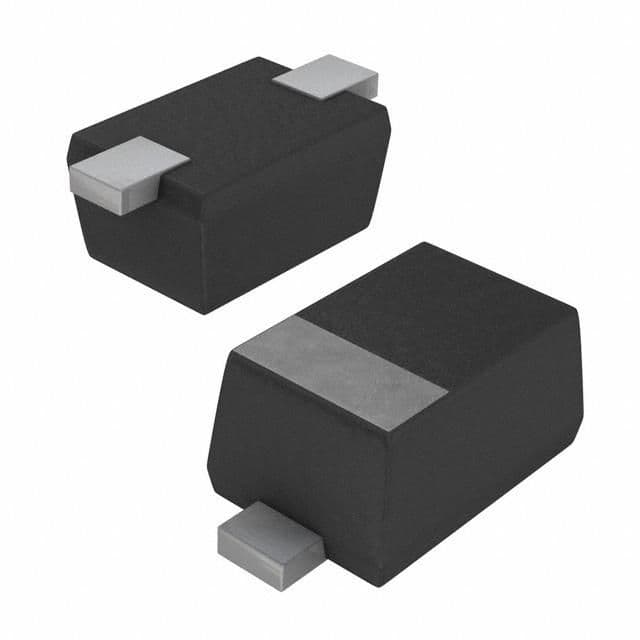

Product Images
