Surface mount signal diode featuring a 1A average rectified current and a 40V maximum reverse voltage. This component operates within a temperature range of -55°C to 150°C and is housed in an SMB package measuring 4.7mm in length, 3.8mm in width, and 2.1mm in height. It is lead-free, RoHS compliant, and supplied on tape and reel for efficient assembly.
PackageSMB
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VS-10BQ040-M3/5BT technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | SMB |
| Height | 2.1mm |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Reverse Voltage | 40V |
| RoHS Compliant | Yes |
| Width | 3.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VS-10BQ040-M3/5BT Datasheet
Download the complete datasheet for Vishay VS-10BQ040-M3/5BT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

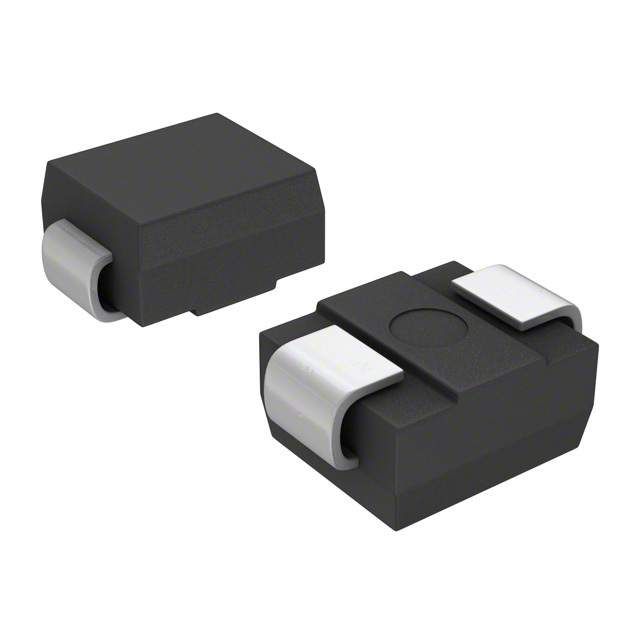

Product Images
