The VS-10BQ060TRPBF is a general purpose rectifier diode with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a maximum reverse voltage of 60V and a maximum reverse current of 100uA. The diode is packaged in an SMB case and is designed for surface mount applications. It can handle a maximum forward surge current of 700A and a maximum average rectified current of 1A.
PackageSMB
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VS-10BQ060TRPBF technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | SMB |
| Forward Current | 1A |
| Height | 0.083inch |
| Length | 0.185inch |
| Max Forward Surge Current (Ifsm) | 700A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 60V |
| Max Reverse Current | 100uA |
| Max Reverse Leakage Current | 100uA |
| Max Reverse Voltage (DC) | 60V |
| Max Surge Current | 700A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 700A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 0.15inch |
Compliance
| RoHS | Compliant |
Datasheet
No datasheet is available for this part.

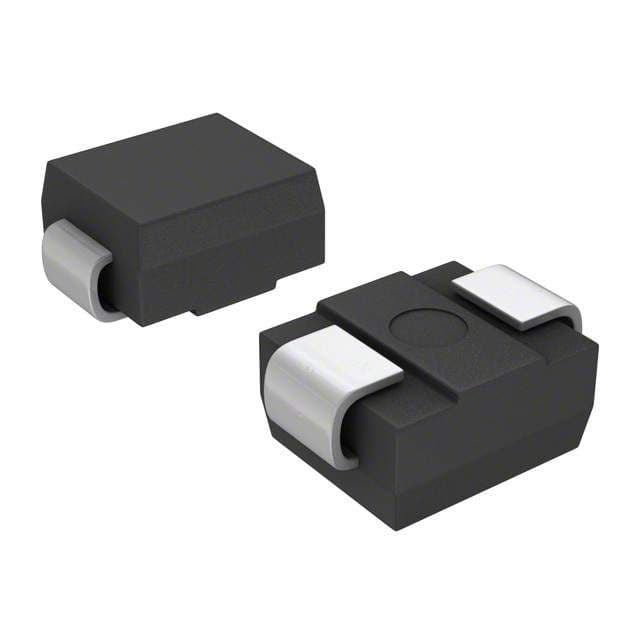

Product Images
