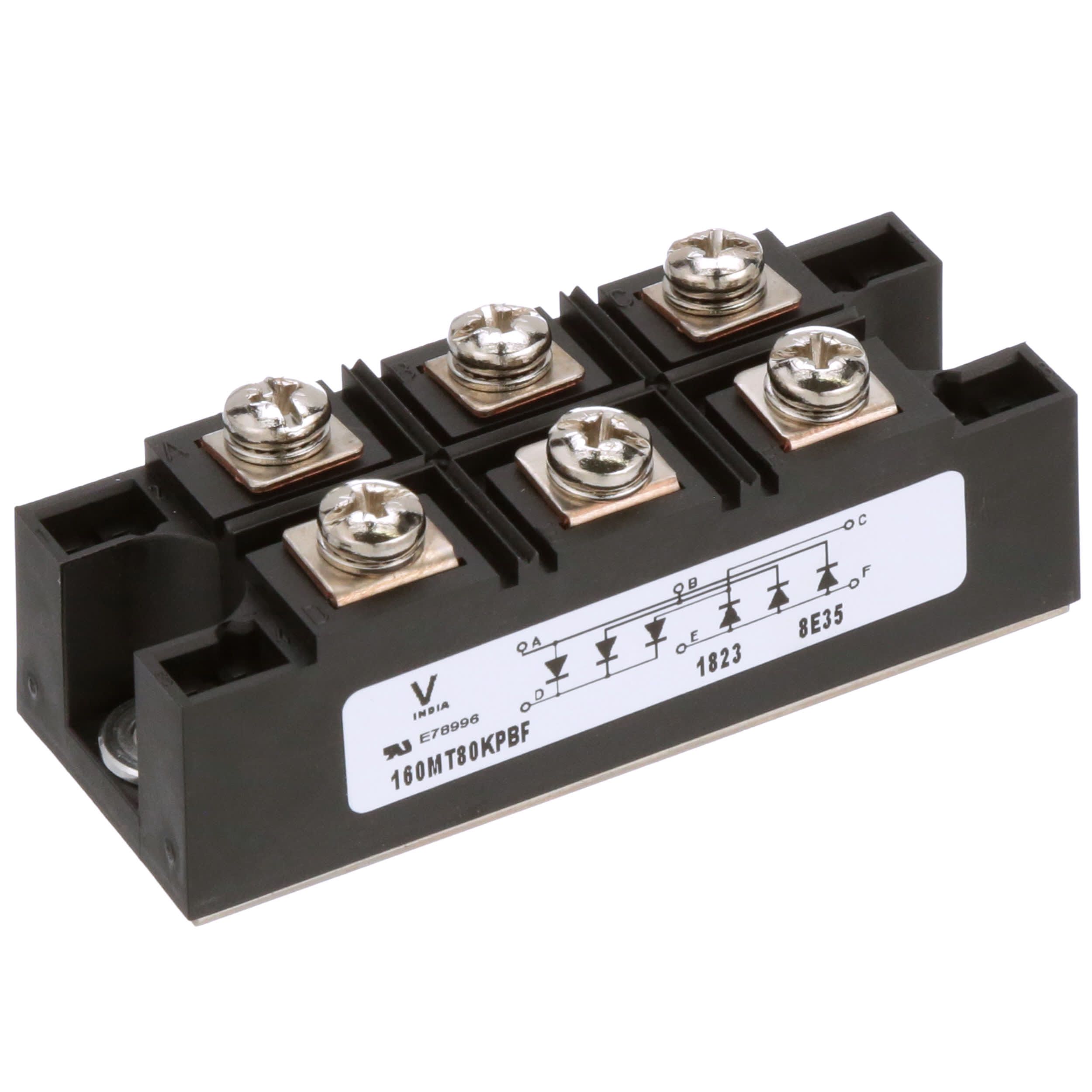

VISHAY VS-160MT80KPBF. Bridge Rectifier Diode, Three, 800 V, 160 A, Module, 1.49 V, 6 Pins
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay VS-160MT80KPBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 160A |
| Package/Case | Module |
| Current Rating | 160A |
| Forward Current | 200A |
| Height | 30mm |
| Length | 94mm |
| Max Forward Surge Current (Ifsm) | 1.5kA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Max Reverse Current | 10mA |
| Max Reverse Leakage Current | 10mA |
| Max Surge Current | 1.5kA |
| Mount | Chassis Mount, Screw, Panel, Surface Mount |
| Package Quantity | 15 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 35mm |
| RoHS | Compliant |
