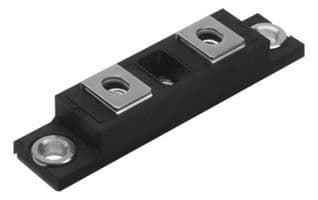

The VS-303CNQ100PBF is a general purpose rectifier diode with a maximum operating temperature of 175°C and a minimum operating temperature of -55°C. It has a maximum reverse voltage of 100V and a maximum forward current of 300A. The diode is packaged in a TO-244AB package and is mounted via screw and panel. It is RoHS compliant and has a maximum surge current of 22kA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay VS-303CNQ100PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 150A |
| Package/Case | TO-244AB |
| Forward Current | 300A |
| Height | 17.5mm |
| Length | 93mm |
| Max Forward Surge Current (Ifsm) | 22kA |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 4.5mA |
| Max Reverse Leakage Current | 4.5mA |
| Max Reverse Voltage (DC) | 100V |
| Max Surge Current | 22kA |
| Mount | Chassis Mount, Screw, Panel |
| Package Quantity | 10 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 22kA |
| RoHS Compliant | Yes |
| Width | 21mm |
| RoHS | Compliant |
